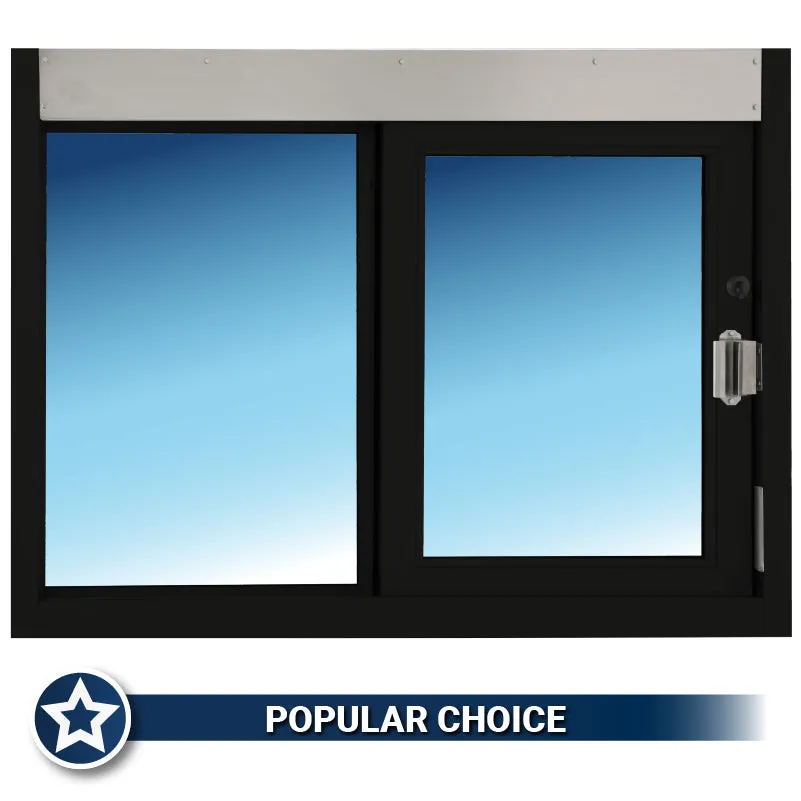

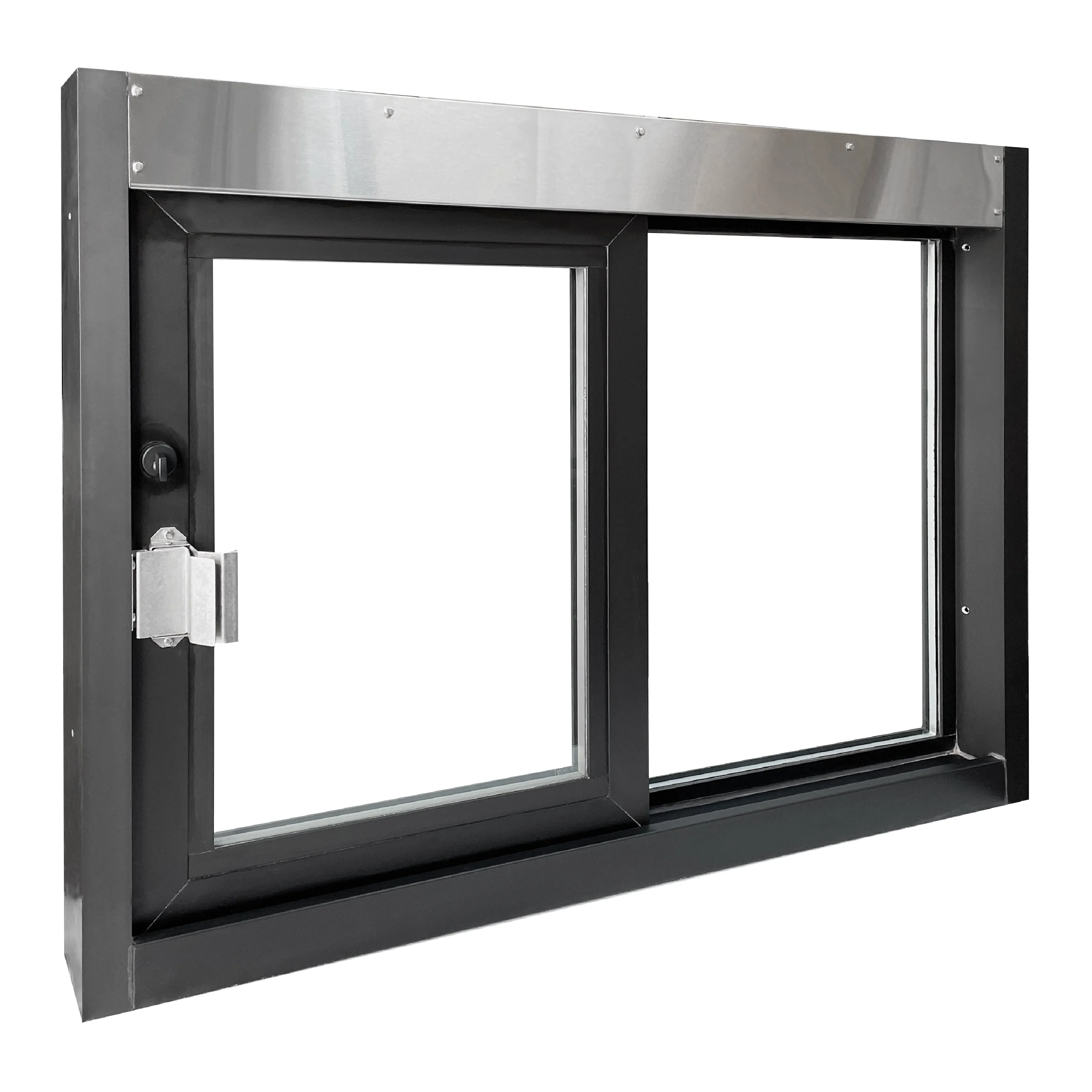

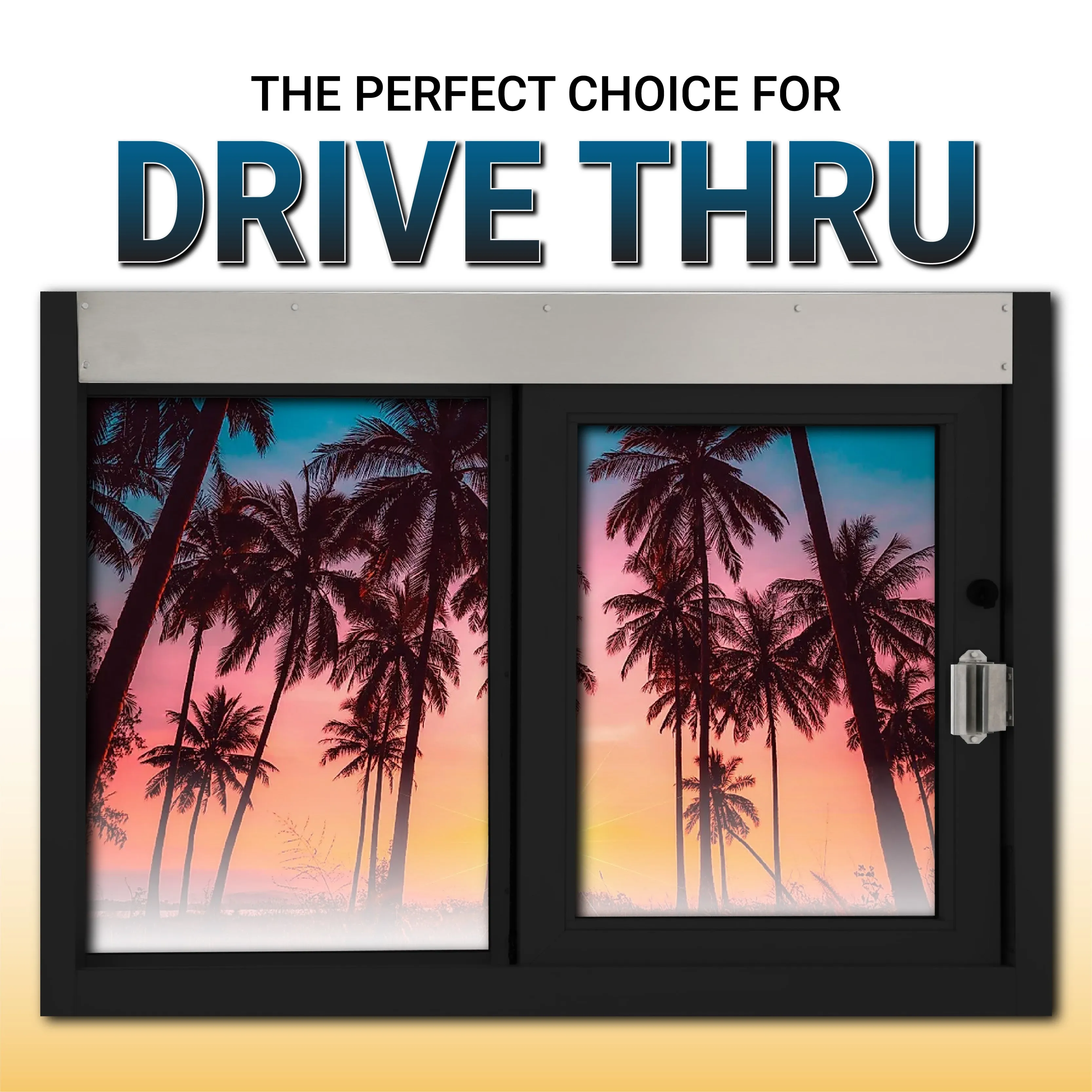

Name: Quikserv Self Closing Drive-Thru Slider Window | Multiple Sizes and Glass Options
SKU: 156607

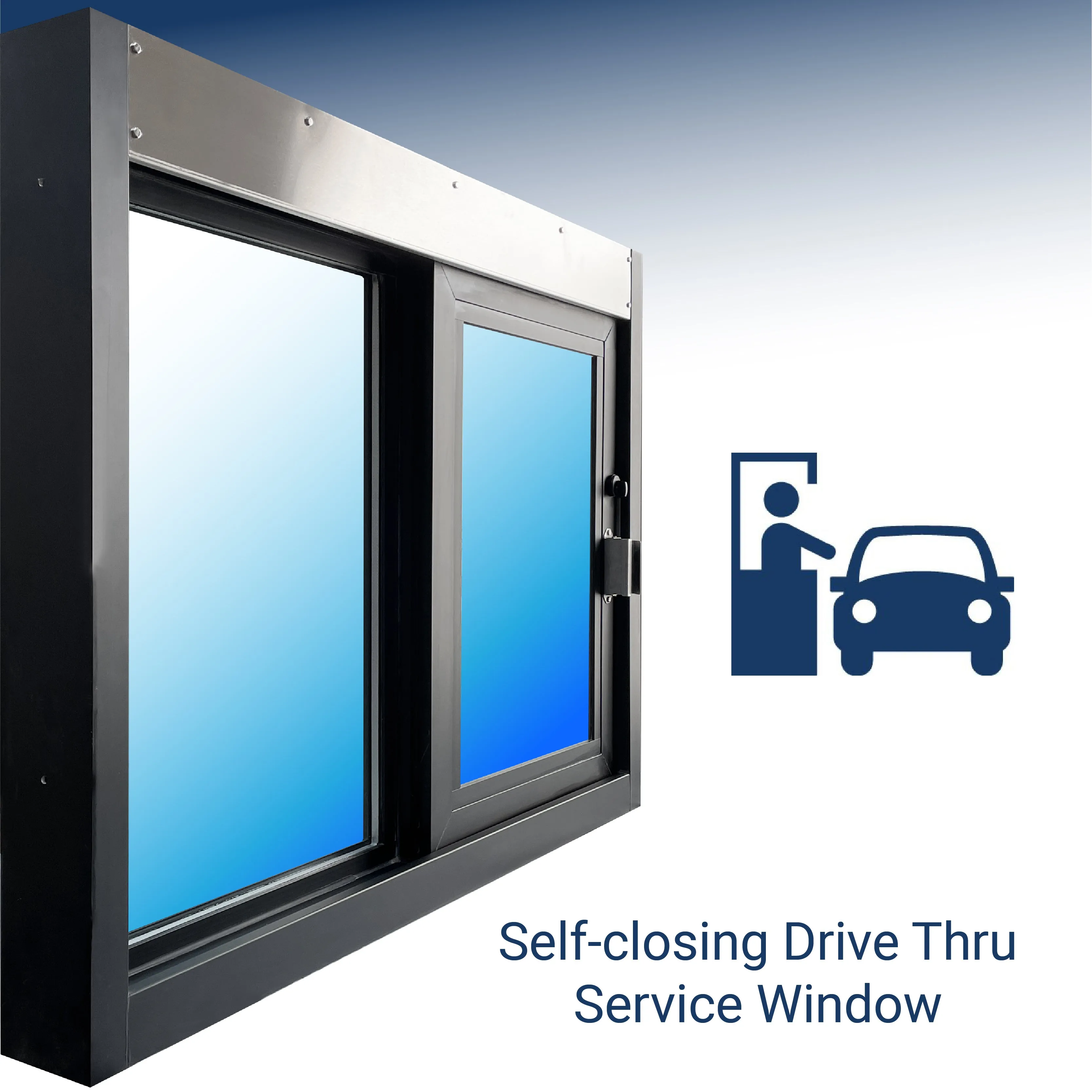

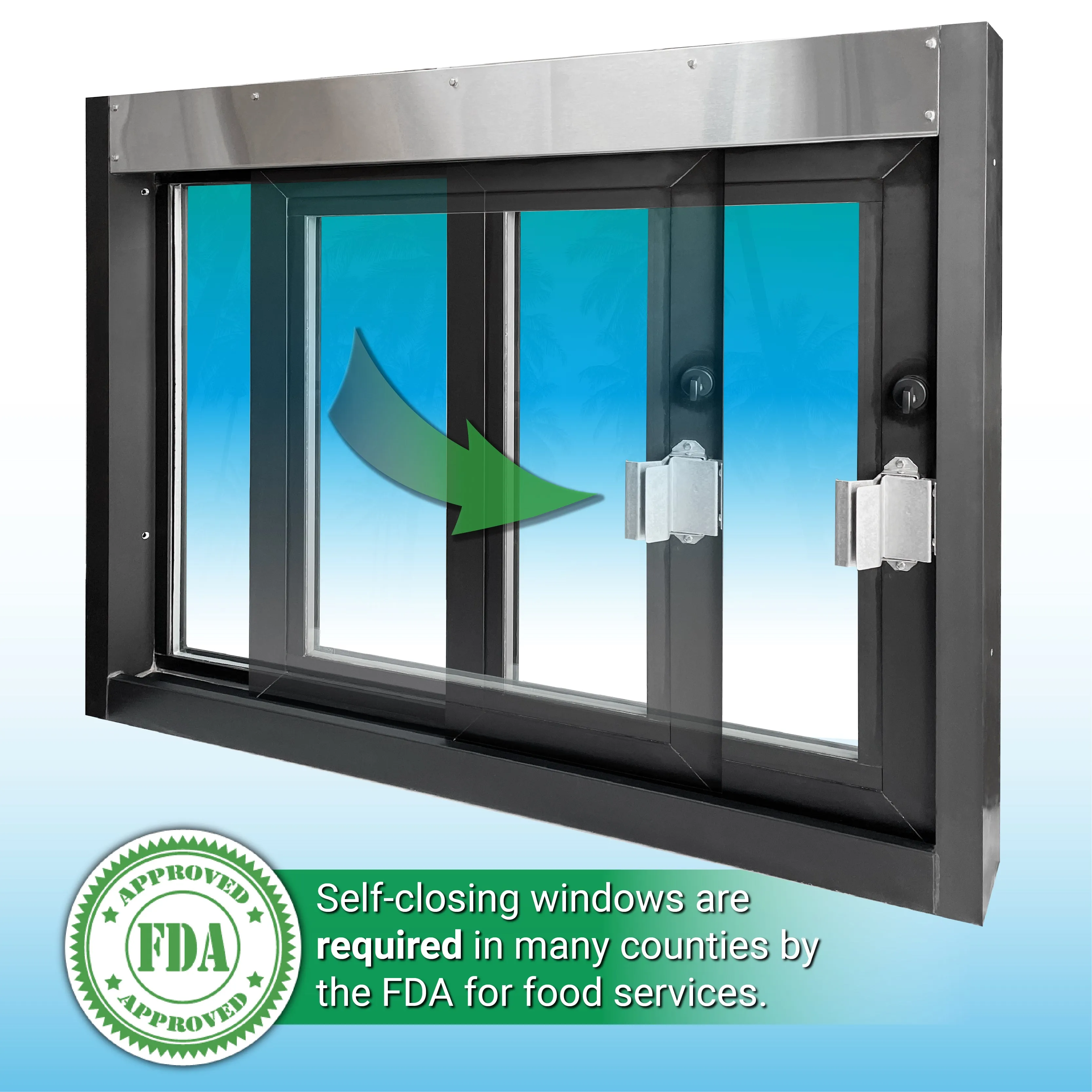

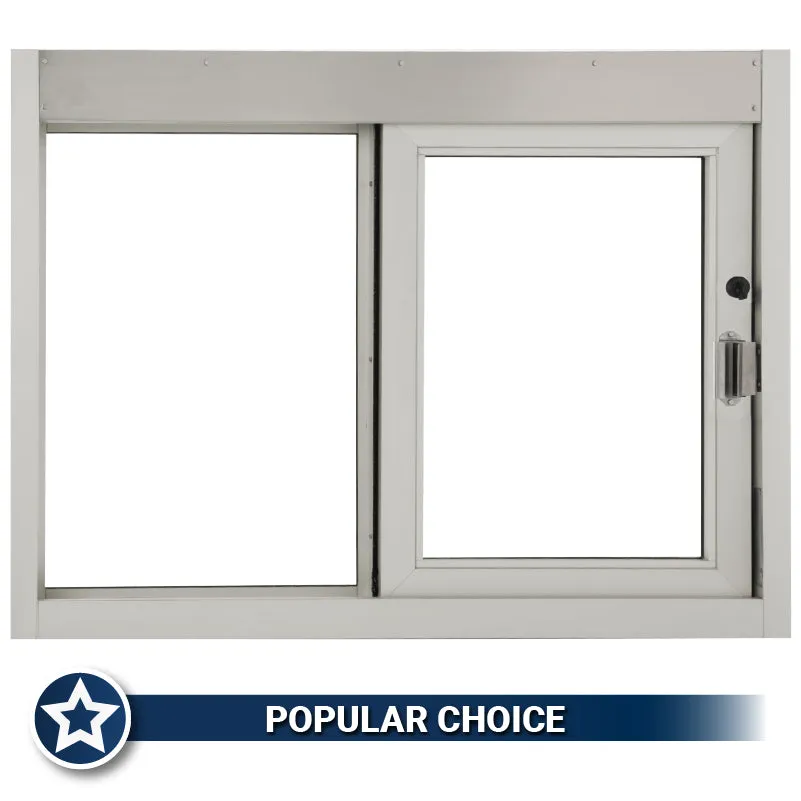

Our Quikserv self-closing transaction windows are a popular choice for all drive thru applications. These windows meet all FDA health code requirements.

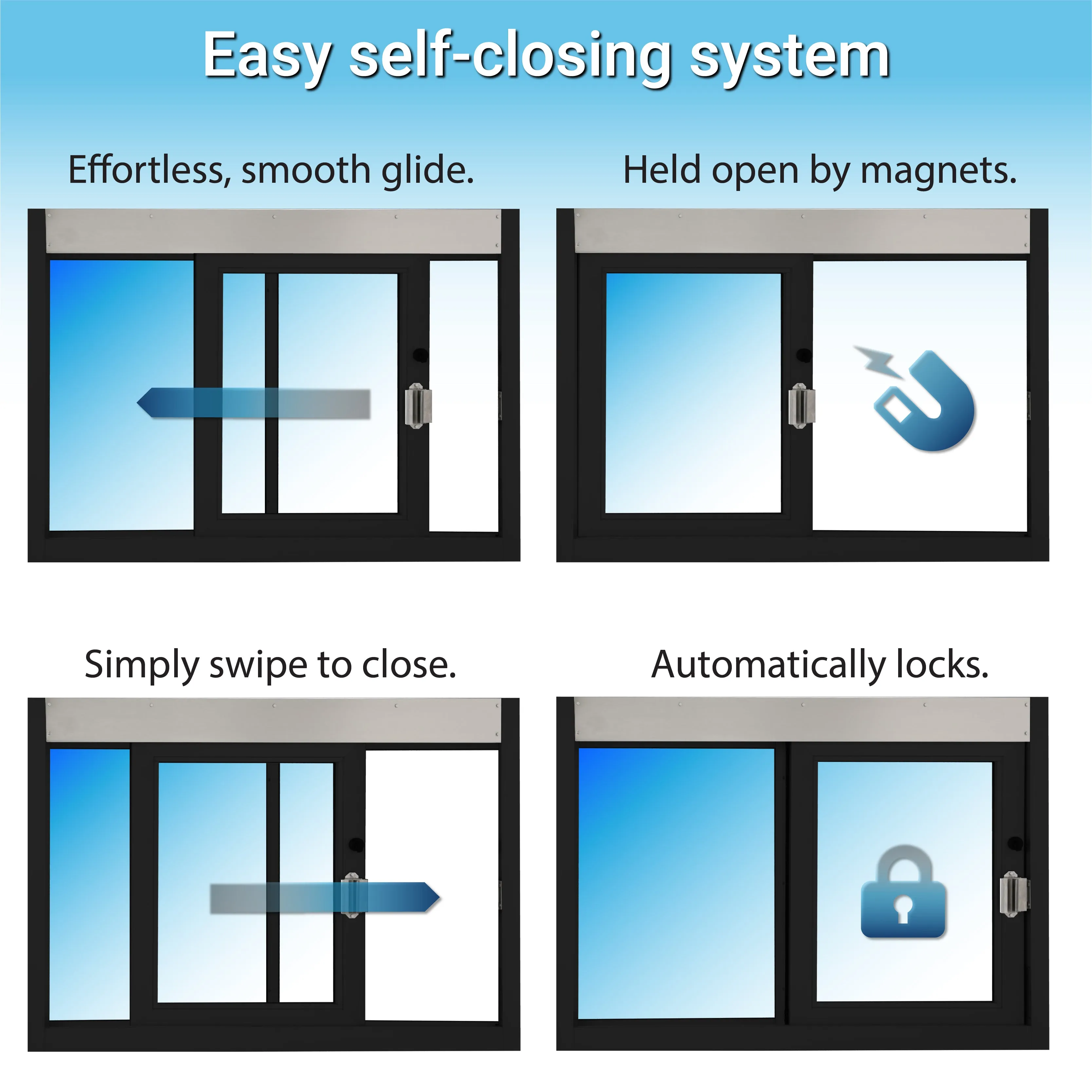

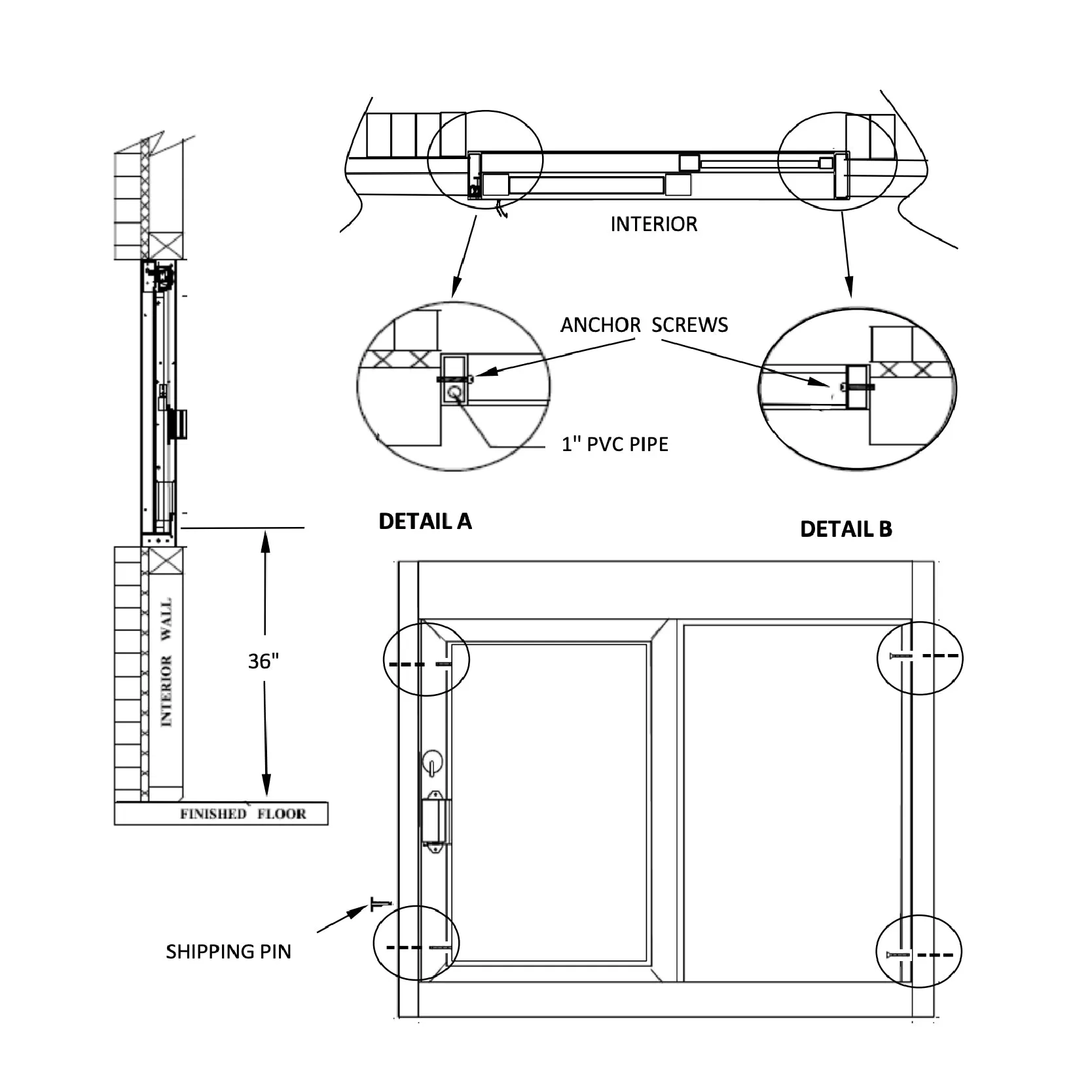

The window units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically.

With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are some the smoothest windows on the market.

Trusted by numerous industry professionals, including Burger King, Arby's, Jack in the Box, and Chick-fil-A.

Shipped fully assembled and ready to install

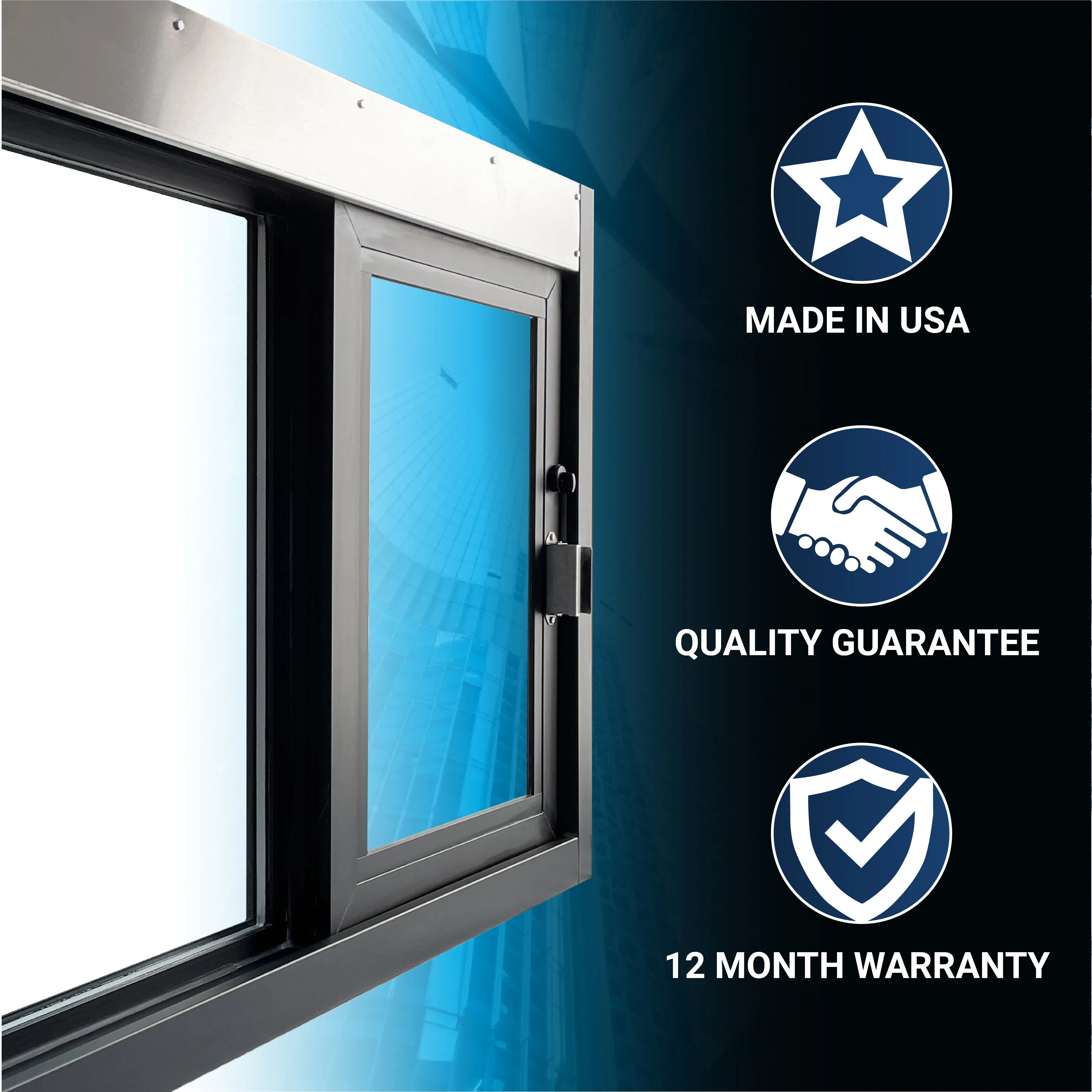

Warranty backed with Nationwide Service Centers
1/4” clear tempered safety glass

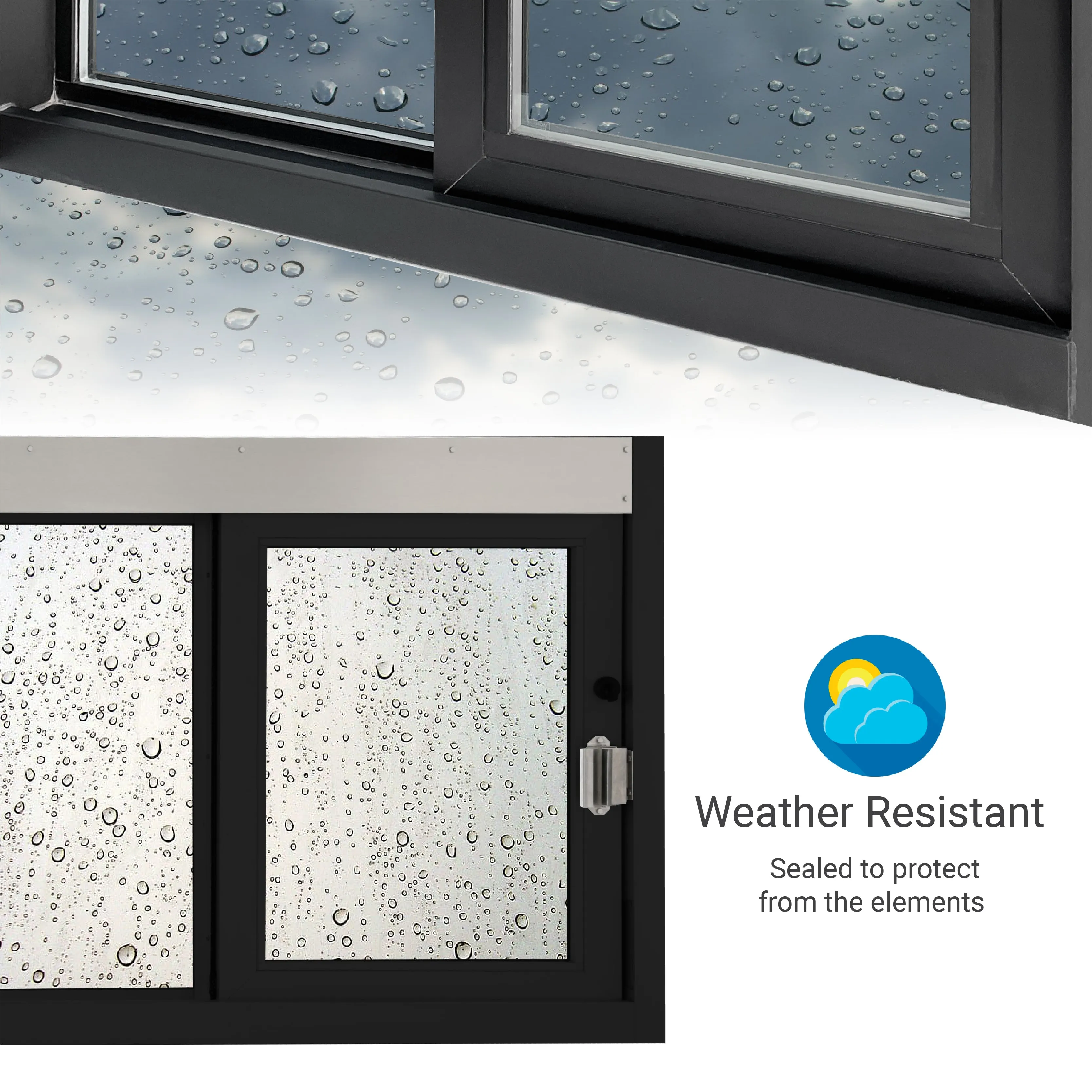

Weather-resistant and sealed to protect from the elements

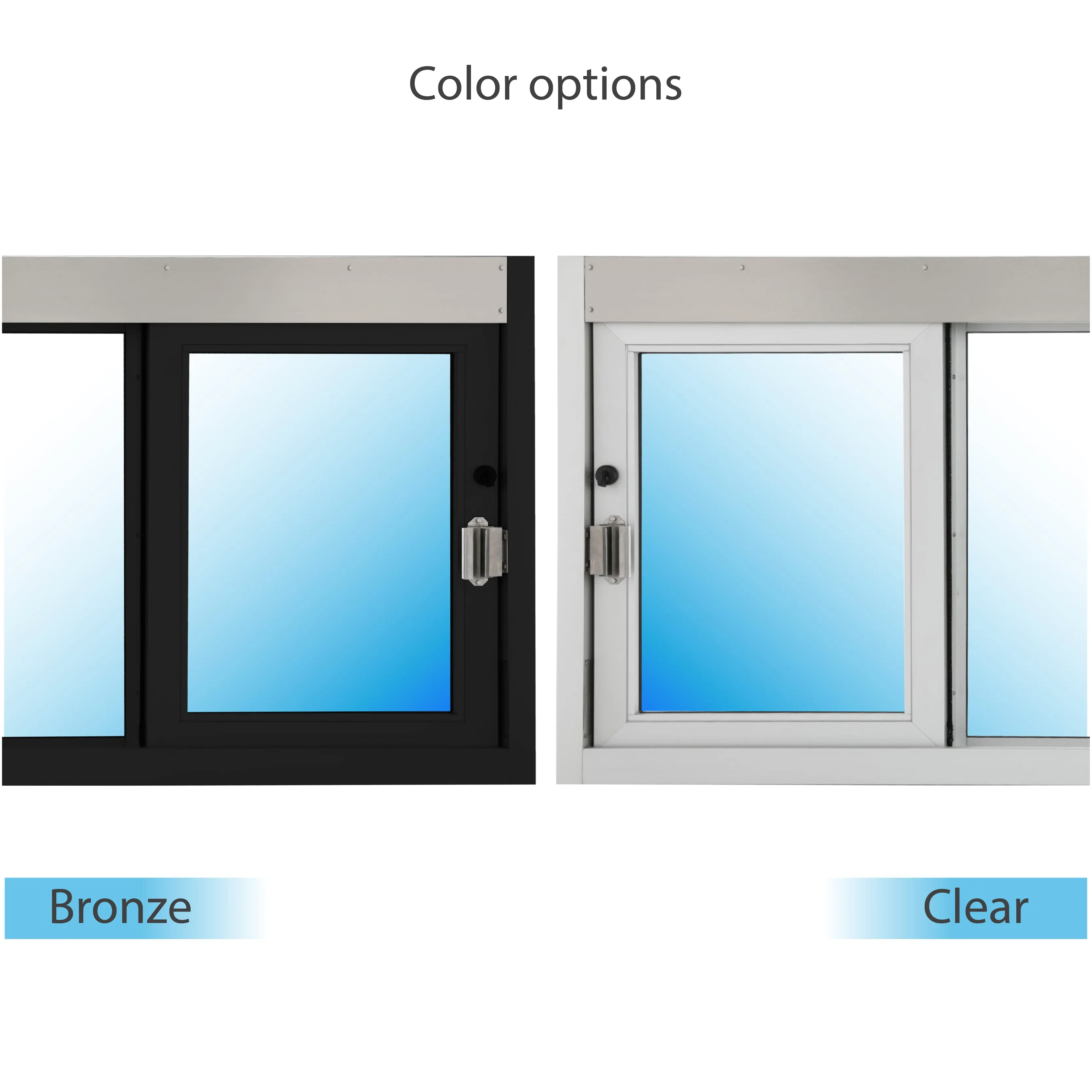

Dark bronze or clear anodized aluminum
Corrosion-resistant material: anodized aluminum and #304-#3 finish stainless steel

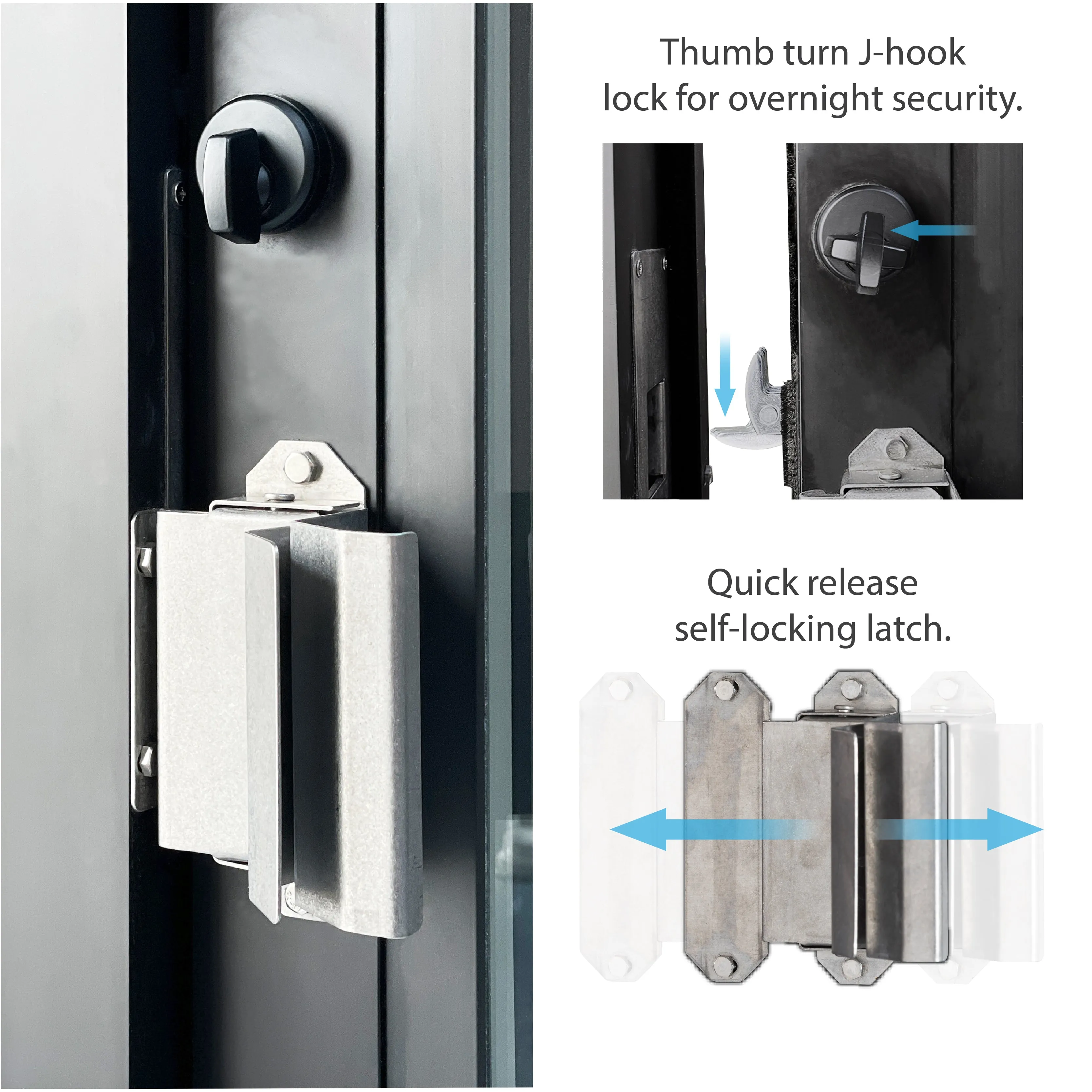

Security locking systems
Maximum security hook-bolt locks
Automatically locks every time the door closes to prevent outside penetration

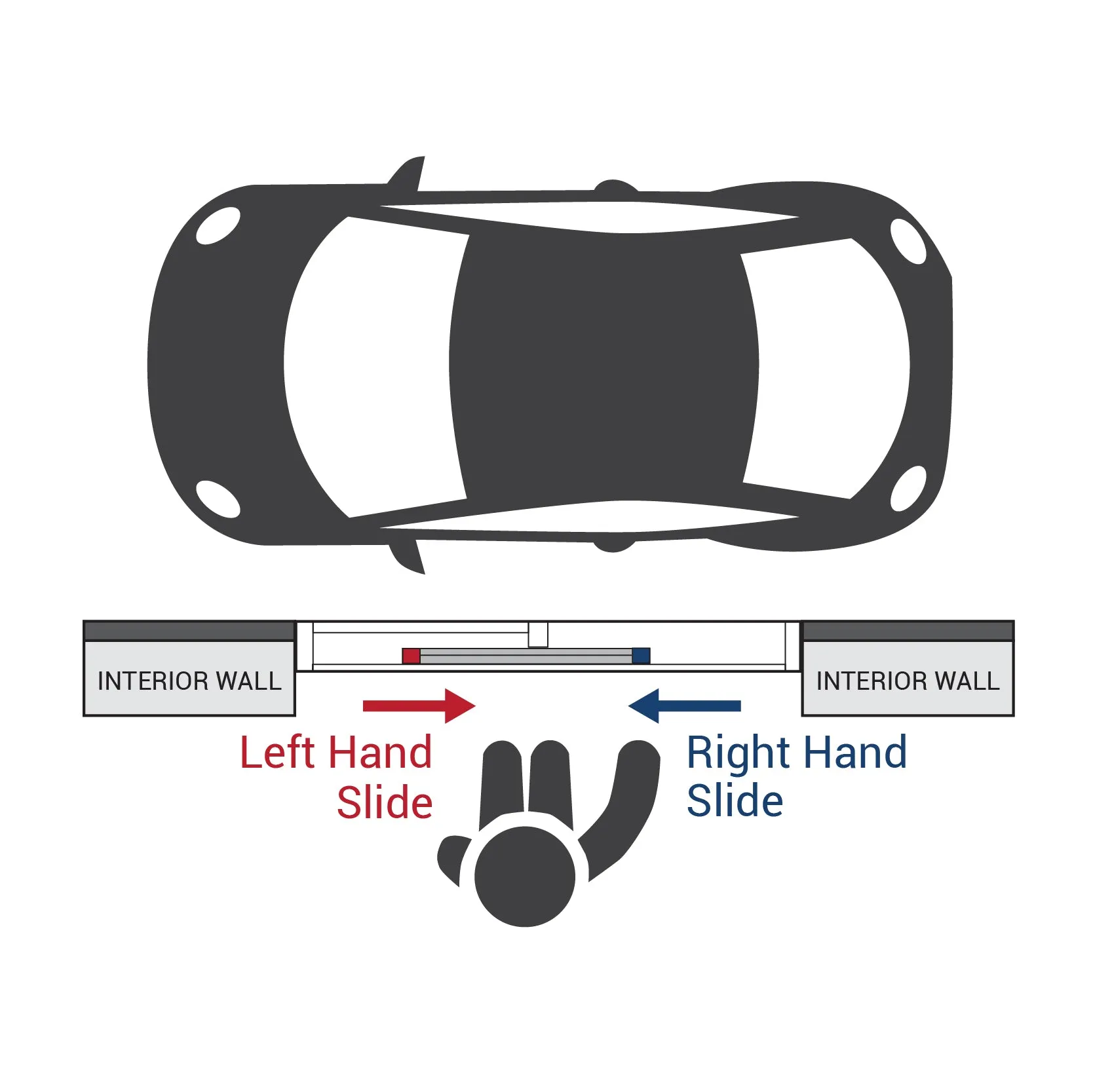

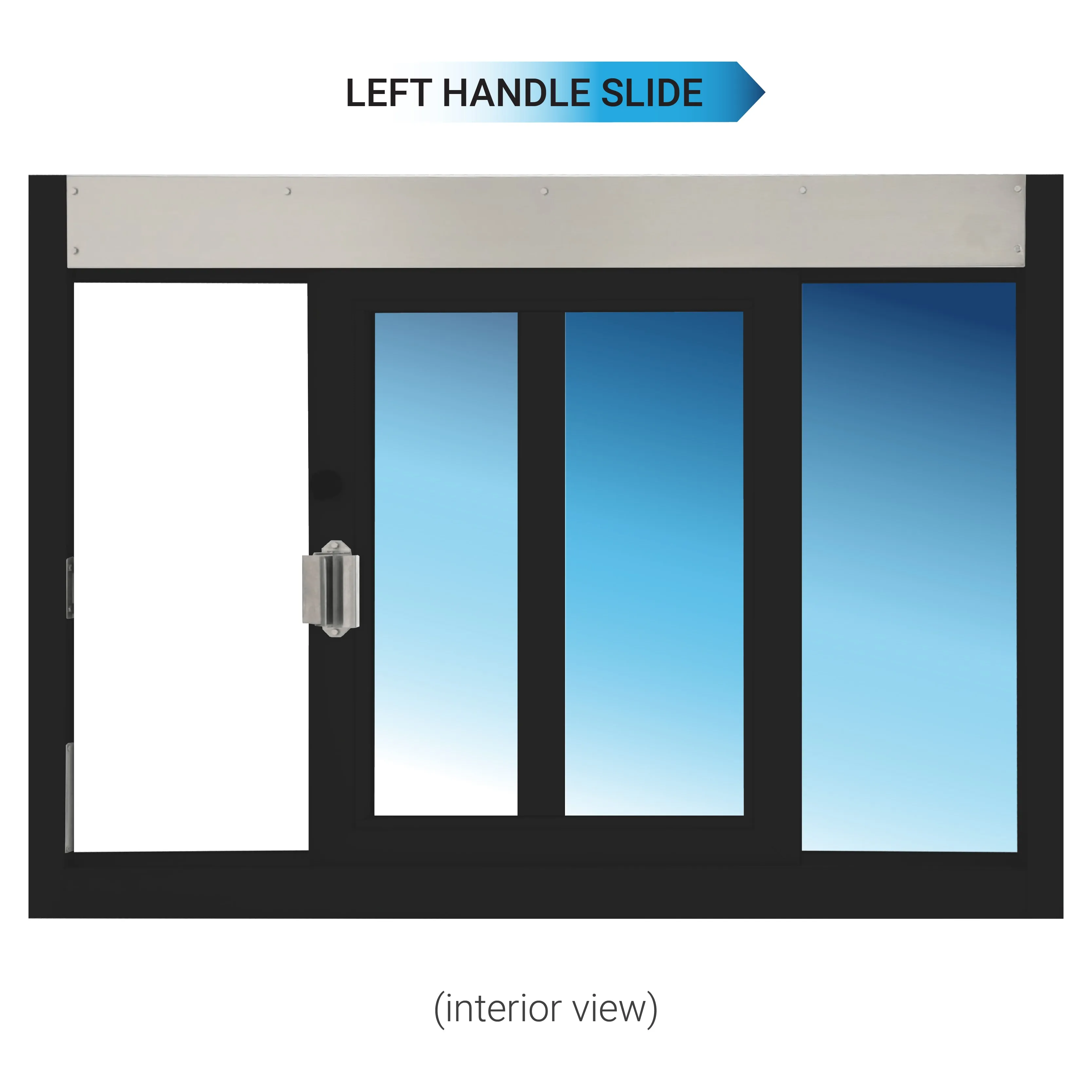

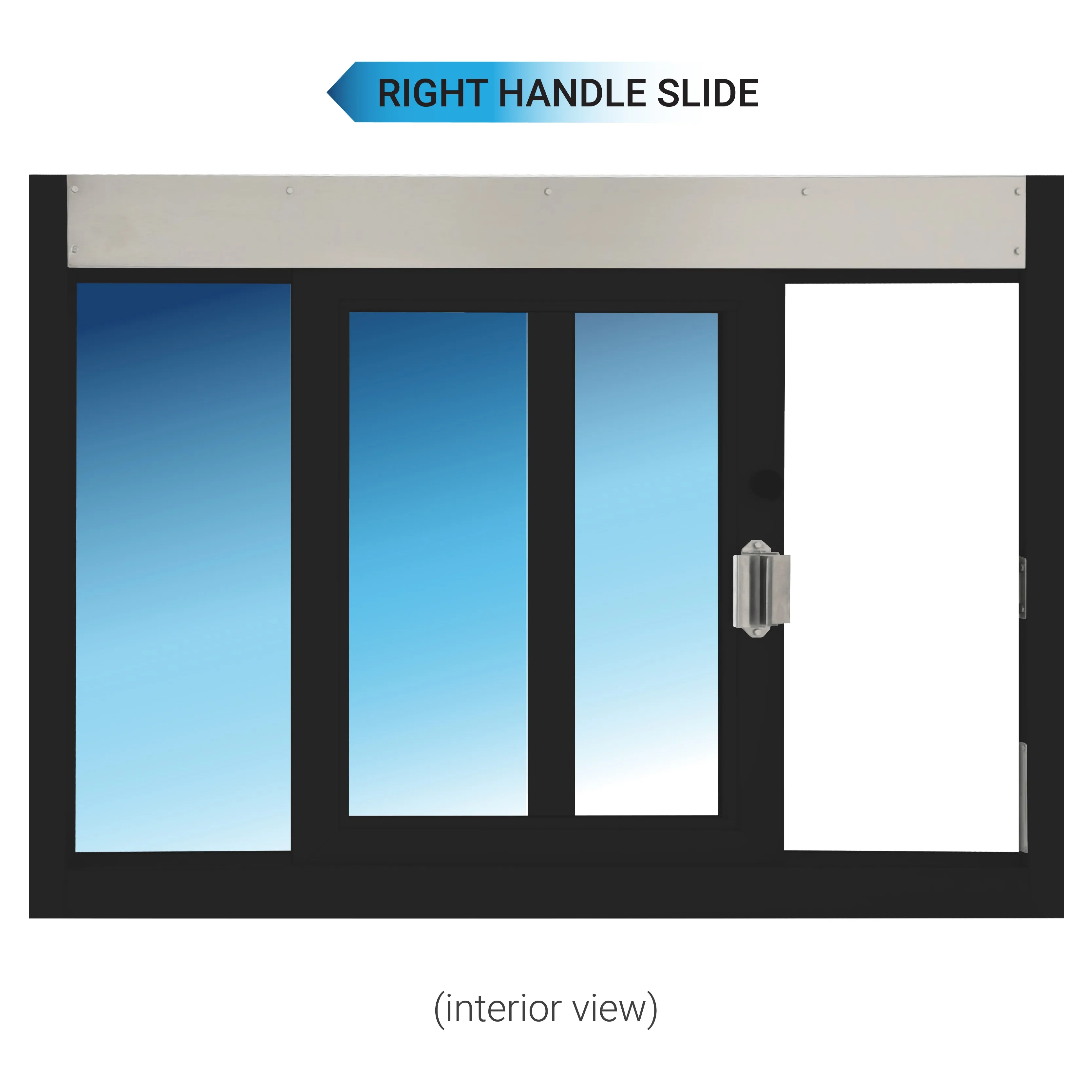

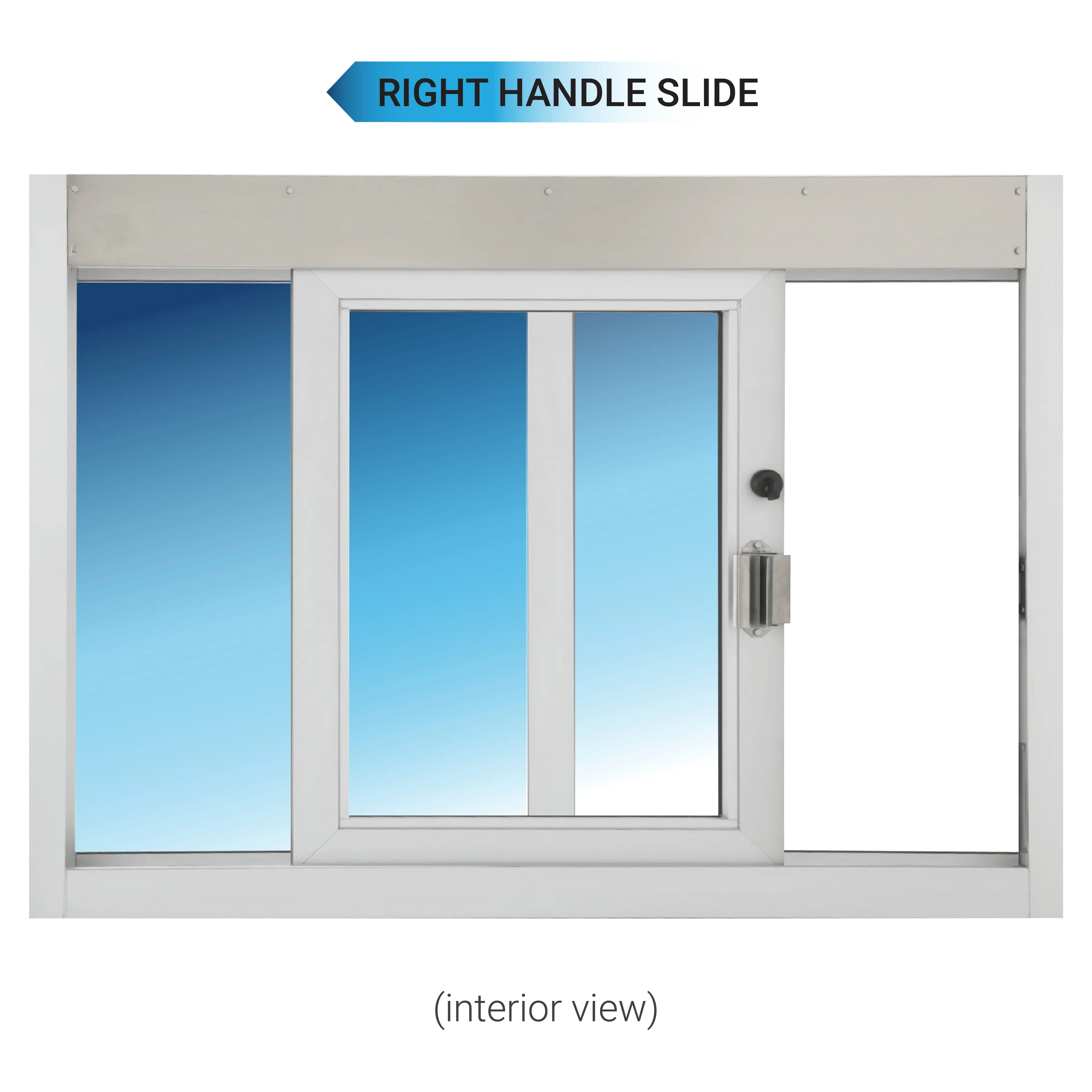

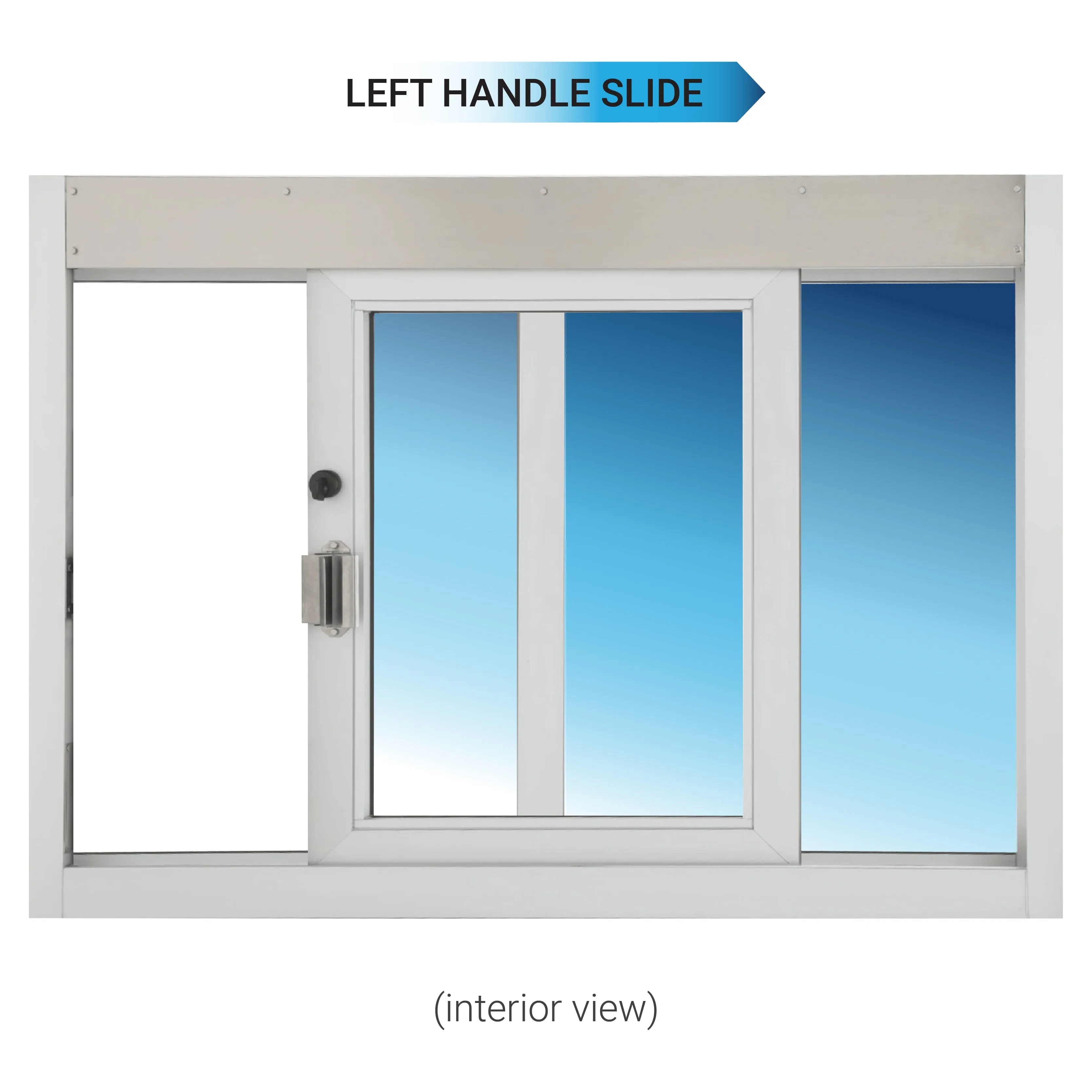

Right or left-hand units

Tech Specs

Installation screw holes: 1/4"

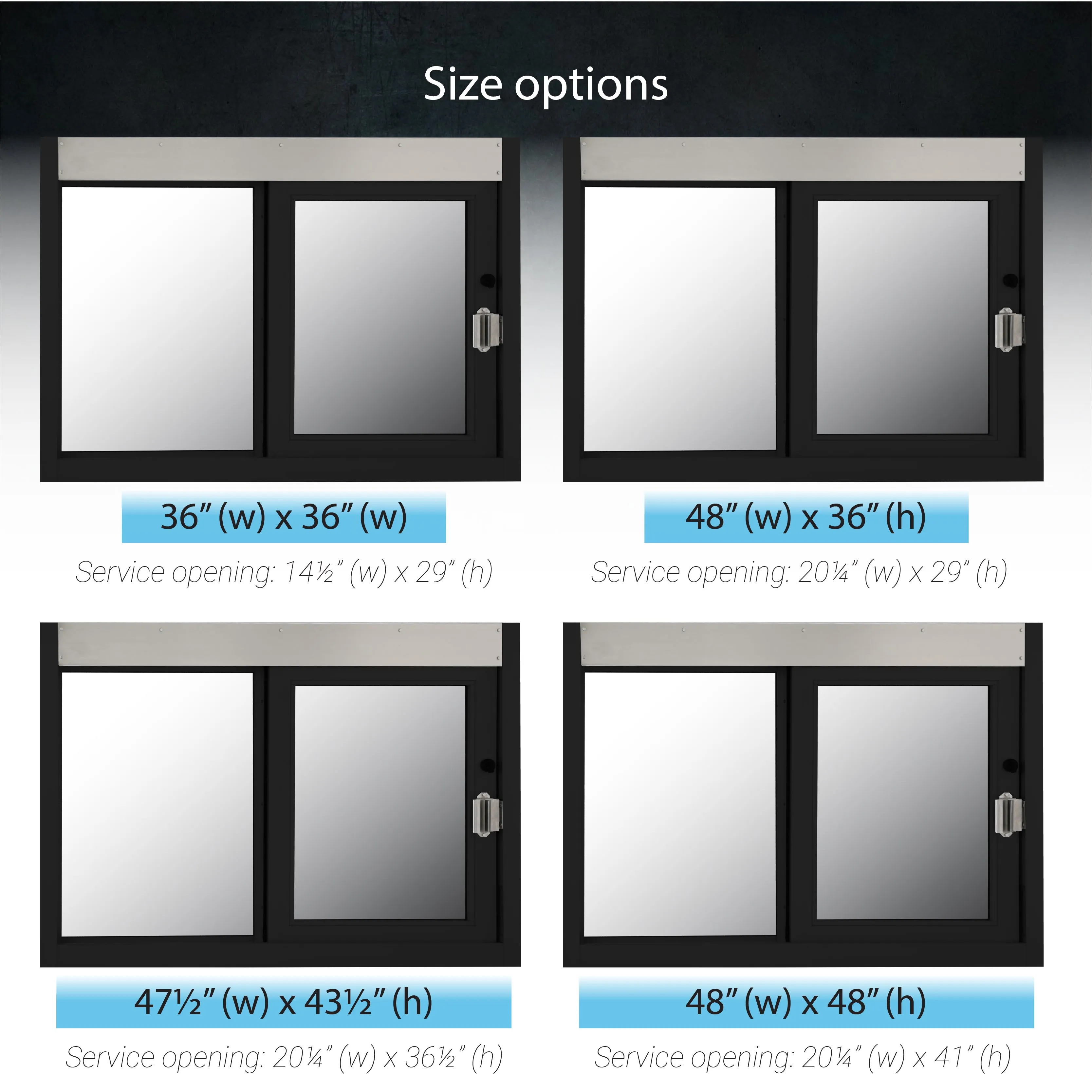

Details

SC-3030

Window unit size: 36" (W) x 36" (H)
Service opening: 14-1/2" (W) x 29"(H)
Rough Opening: 36 3/8" (W) x 36 3/8" (H)

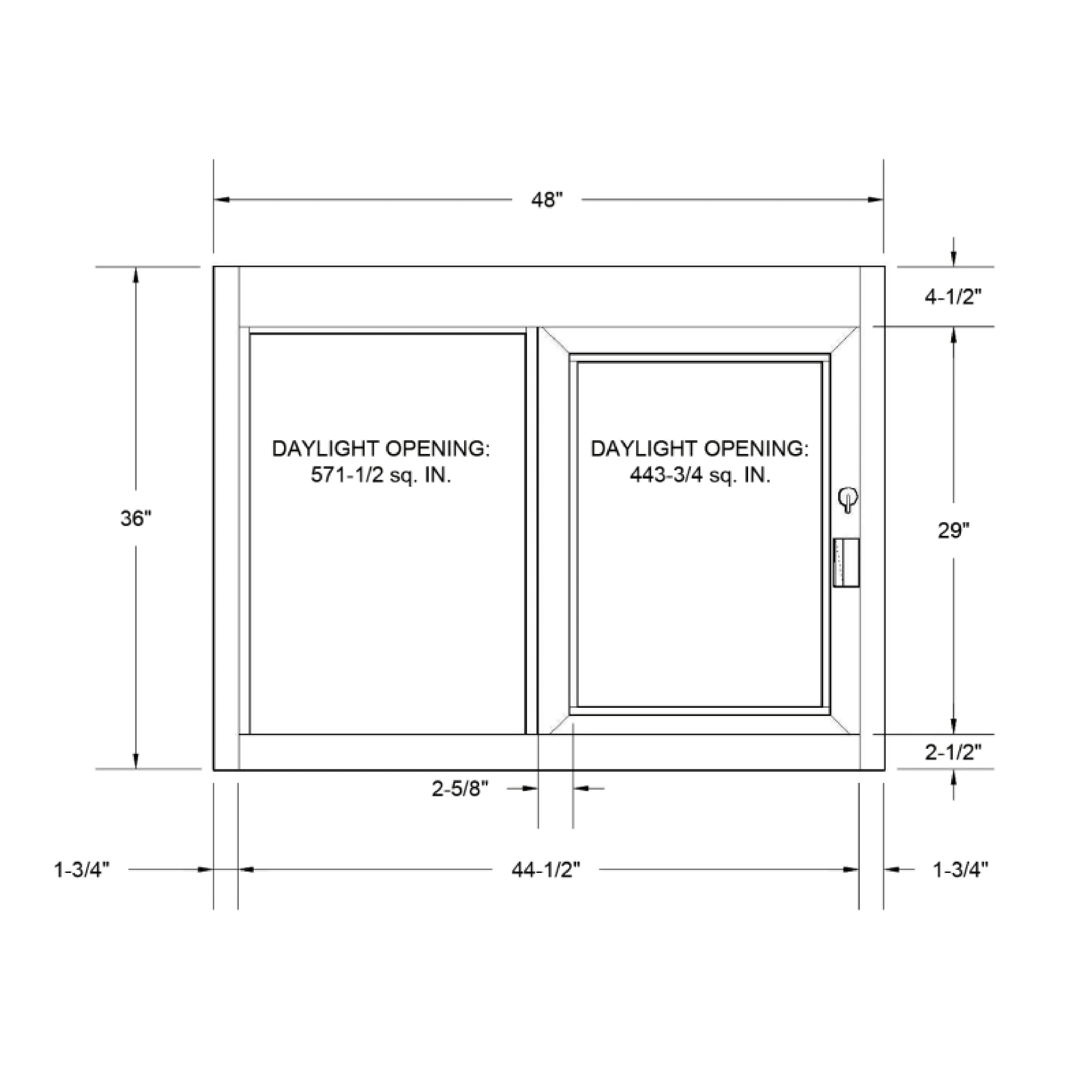

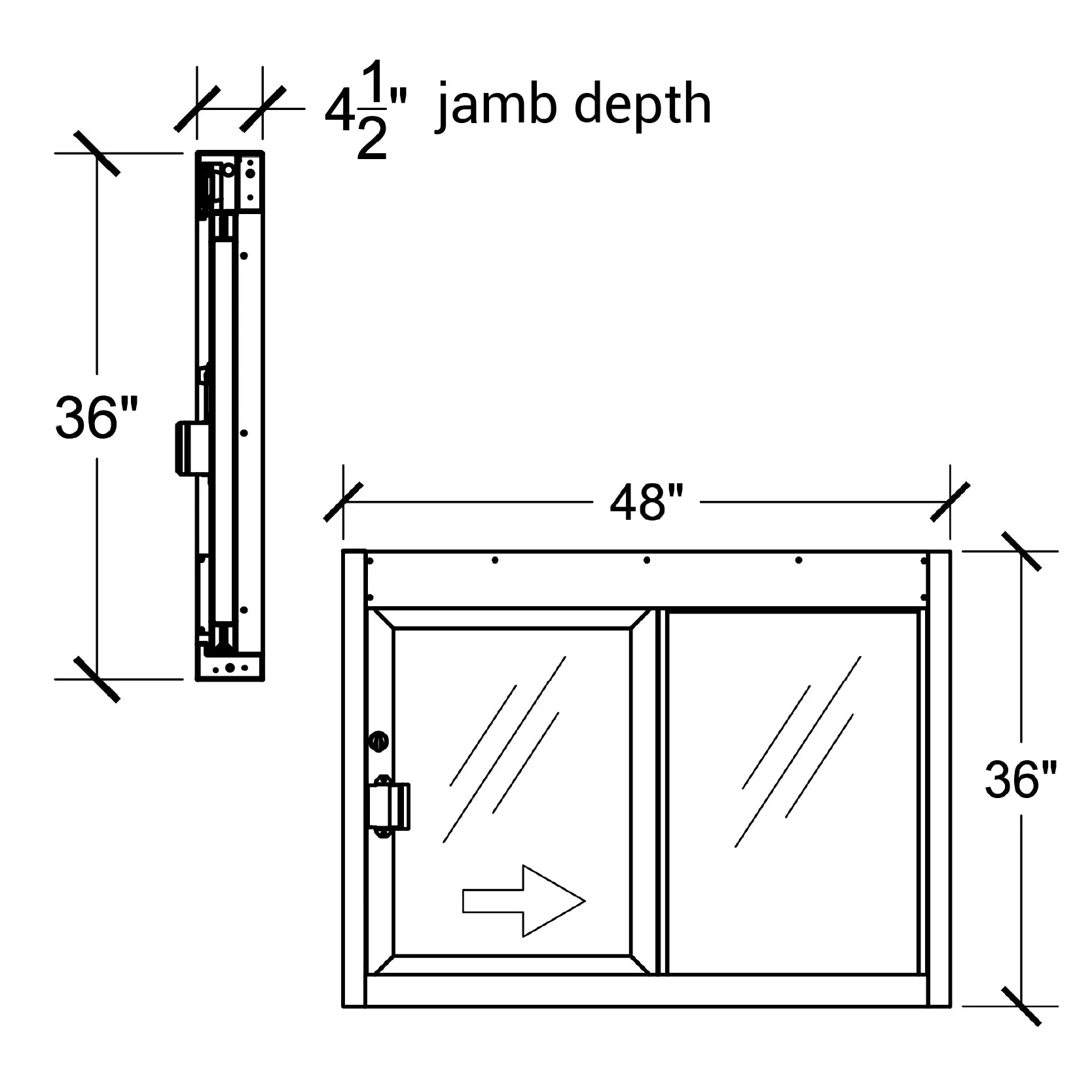

SC-4030

Window unit size: 48" (W) x 36" (H)
Service opening: 20-1/4" (W) x 29" (H)
Rough Opening: 48 3/8" (W) x 36 3/8" (H)

SC-4040

Window unit size: 48" (W) x 48" (H)
Service opening: 20-1/4”W x 41”(H)
Rough Opening: 48 3/8" (W) x 48 3/8" (H)

SC-4844

Window unit size: 47-1/2" (W) x 43-1/2" (H)
Service opening: 20-1/4”W x 36-1/2”(H)
Rough Opening: 47-7/8" (W) x 43-7/8" (H)

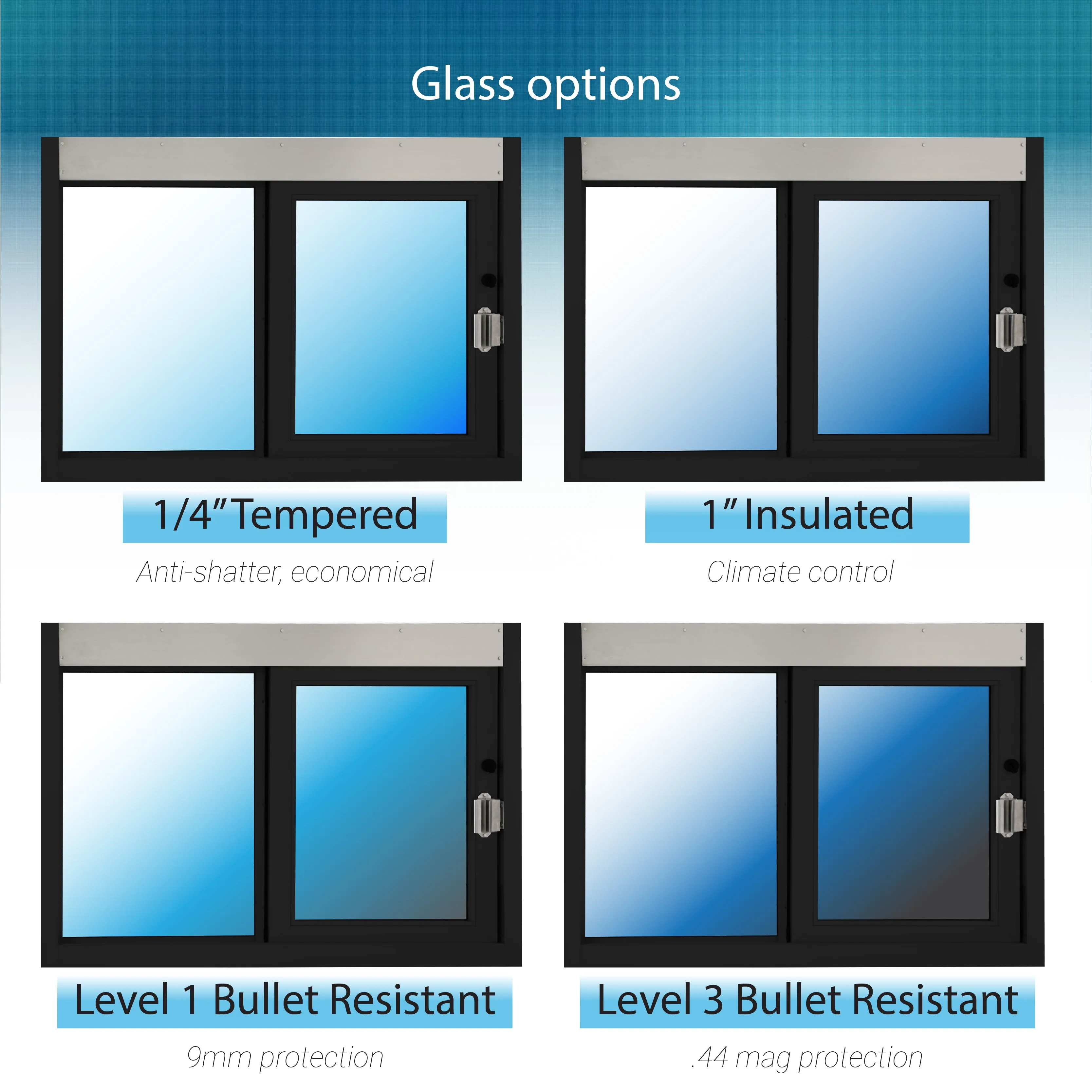

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

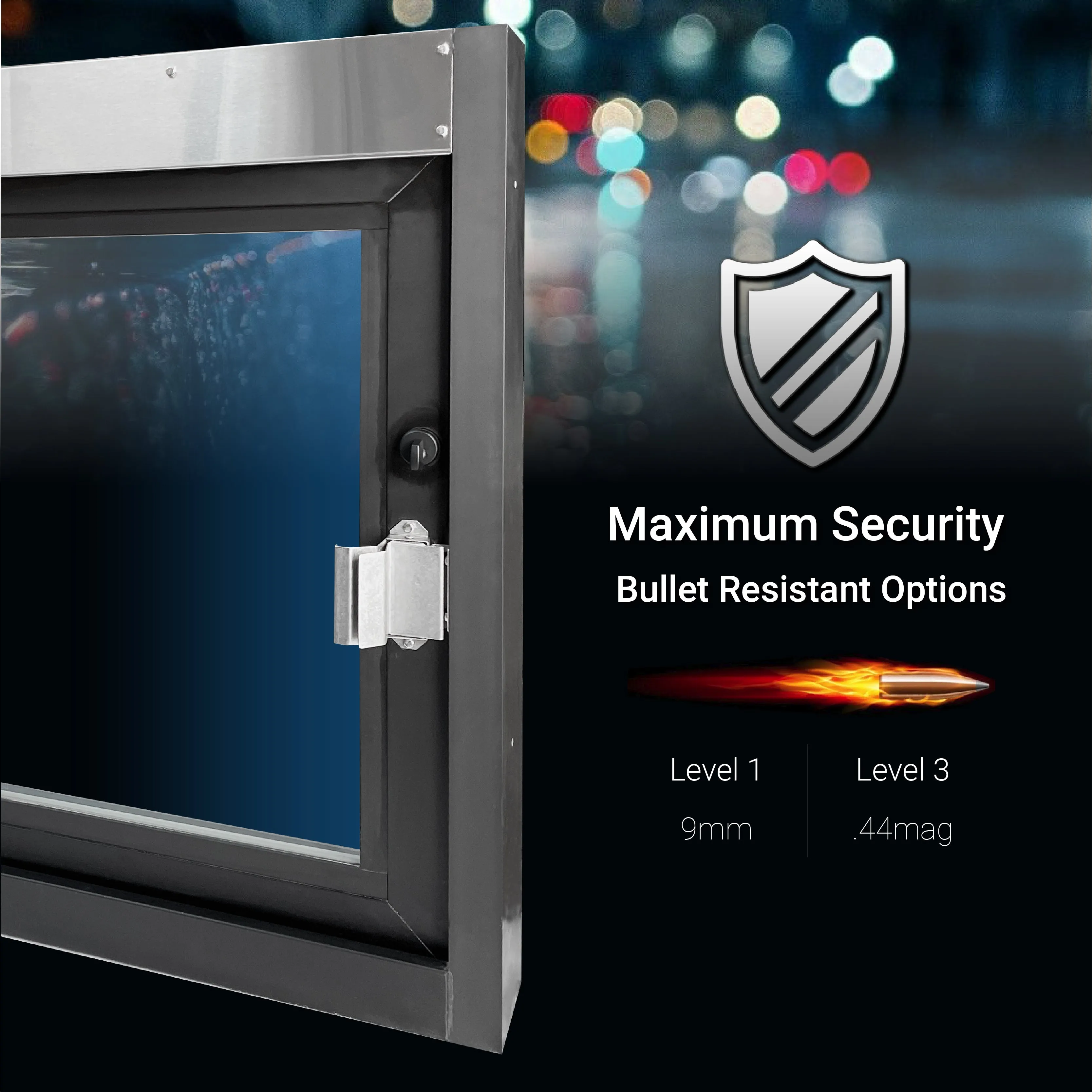

Level 1 Glass

Ballistic Protection: 9mm UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >90%
Haze: <1%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,500 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: 1.2" min
Smoke density: max 8%, rating 5%
Auto ignition temperature: 870 F

Level 3 Glass

Ballistic Protection: .44 magnum UL 752
Thickness: 1.25"
Weight (lbs/sq ft.): 7.7
Transmission: >85%
Haze: <1.5%
Abrasion resistance (coated): 0.2 to 2.0 (%haze change)
Abrasion resistance (uncoated): 14 (%haze change)
Tensile strength: 9,400 psi
Tensile modulus: 400,000 psi
Flex modulus: 400,000 psi
Burn rate: .23" min
Smoke density: max 65%, rating 49%
Auto ignition temperature: 870 F

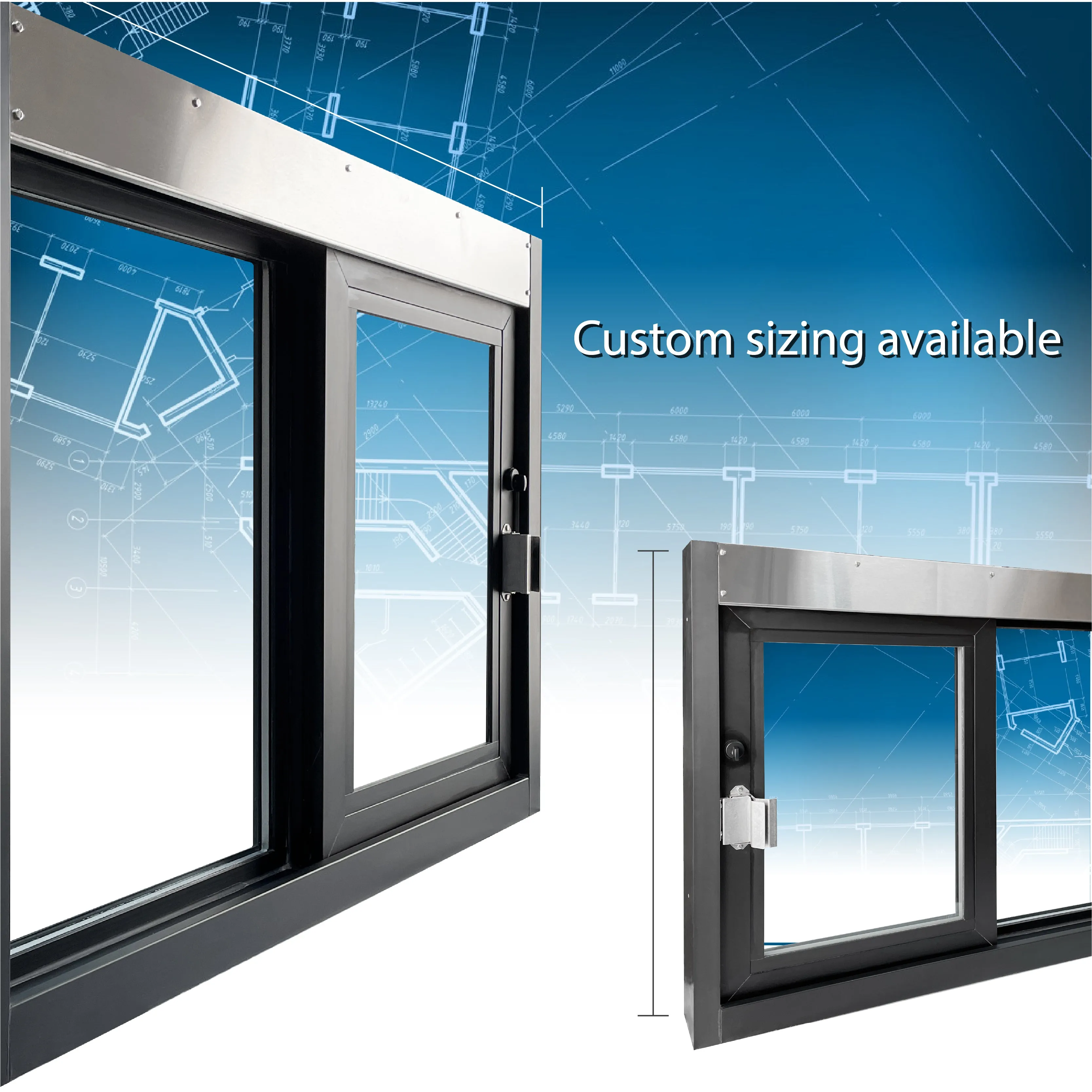

Customization

Built to fit.

Our windows can be customized to fit your project's needs.
We offer a wide range of size options, as well as transoms and sidelights.

Call for details and pricing.

Need a custom color?

We can provide your window in any color of your choice with a custom powder coat finish! For powder coats, click here to select from one of the colors in our powder coat brochure.
